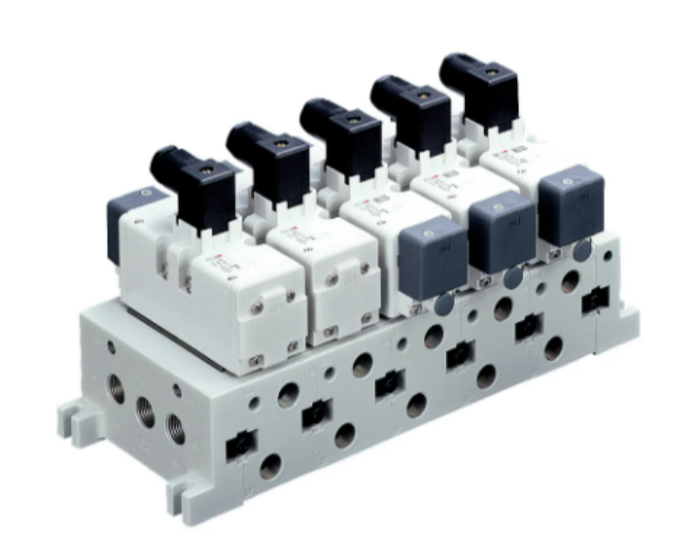

A 5-Port Solenoid Valve is an essential component widely used in industrial automation systems, especially in pneumatic applications where precision and control of compressed air flow are required. These valves are electrically operated and designed with five functional ports that enable efficient control of double-acting cylinders, actuators, and pneumatic tools. The solenoid coil receives an electrical signal, which triggers the valve mechanism to direct airflow and switch operational positions.
One of the key advantages of a 5-Port Solenoid Valve is its versatility. It typically operates in either a 2-position or 3-position configuration, making it suitable for applications requiring forward, reverse, or neutral stopping functions. The arrangement of ports includes two outlet ports, two exhaust ports, and one inlet port, allowing seamless directional control of air. Many models come in different sizes such as 1/8”, 1/4”, or 1/2” BSP/NPT, enabling compatibility with a wide range of pneumatic systems.
These valves are constructed using high-quality materials like aluminum, brass, or stainless steel, ensuring durability and corrosion resistance. Features such as low power consumption coils, quick response time, and high operational reliability make them ideal for continuous industrial use. They can be operated manually, mechanically, or electrically, depending on the application's requirements.
Common applications of 5-port solenoid valves include packaging machines, conveyors, robotic automation systems, textile machinery, injection molds, and material handling systems. They also find use in automotive assembly lines, food processing units, and medical devices requiring controlled air movement.
