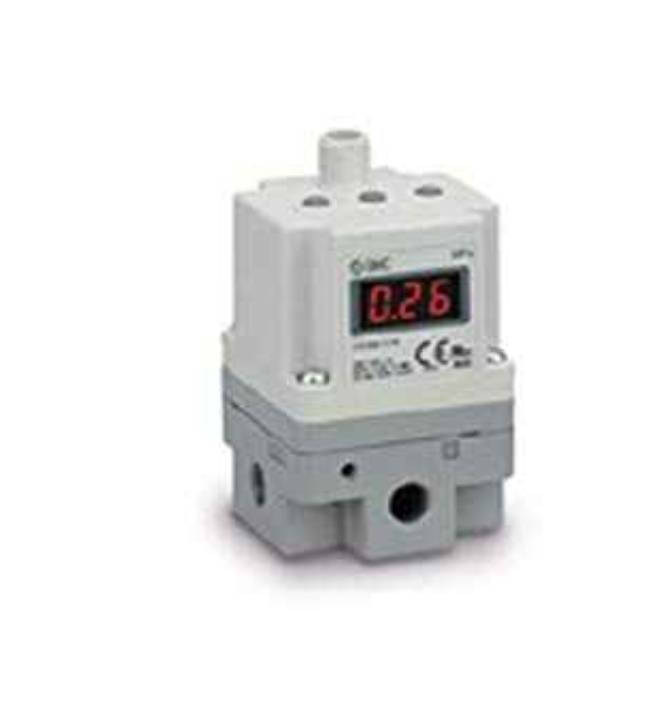

ITV1050-331BL2 Electro-Pneumatic Regulator
In stock • cod available
Description
Technical Specifications:-
Type of Product - Electro-Pneumatic Regulator
Pressure range - 0.9 MPa
Power supply voltage - 24 VDC
Input signal/ Communication model - Voltage type 0 to 10 VDC
Monitor output - Switch output/PNP output
Thread type - Rc
Port size - 1/8
Bracket - Flat bracket
Cable connector type - Right angle type 3 m
Pressure display unit - kgf/cm2
Features:-
1) Stepless control of air pressure in proportion to electrical signals
2) Sensitivity: 0.2 kPa (100 kPa specification)
3) Linearity: ±1% or less (F.S.)
4) Hysteresis: 0.5% or less (F.S.)
5) Communication: CC-Link, DeviceNet™, PROFIBUS DP, RS-232C
6) Compact/lightweight
